Learning Objectives

After completing this lesson, you’ll be able to:

• Set the Attribute References parameter to control how a custom transformer handles attribute inputs.
• Explain how the "Handle With Published Parameters" setting affects custom transformer parameters.
• Control which attributes are exposed to and output by a custom transformer.

Custom Transformers and Parameter Input

FME transformers have parameters whose value can be supplied by attributes or user input. The same is still true of transformers inside a custom transformer definition. However, these inputs must be flexible because a custom transformer can be reused in multiple places.

Parameter Input by Attributes

Many transformer parameters can be set up to accept values from attributes.

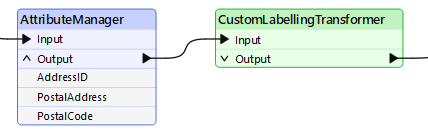

Take this custom transformer that creates custom map labels:

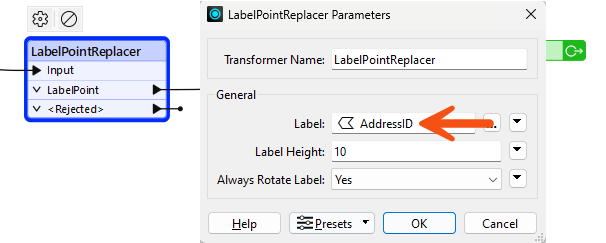

Inside that custom transformer is a LabelPointReplacer transformer. It uses AddressID as the value for the label:

As created, the custom transformer works fine. However, consider if that transformer is used in a context where AddressID does not exist:

This transformer is flagged as "incomplete". It is used in a scenario where AddressID is not available.

Parameter Input by User Parameters

Besides attributes, most FME parameters can be set up to accept values from User Parameters.

In a similar setup to above, here a custom transformer contains a LabelPointReplacer transformer whose label value is selected by user input:

Here, the issue is not where the custom transformer is used; it's duplication. If each instance of the custom transformer uses the same user parameter, they will all get the same input.

We need a mechanism for the user to enter different values per transformer instance.

As an analogy, consider a mobile device such as a cell phone. On my phone, I can change the default language from English to (for example) Swedish. The manufacturer implemented this because they cannot tell where the phone might be used, by whom, or what language might be used for input.

In much the same way, an FME custom transformer could be used outside of its expected area. The author must, therefore, implement the transformer to be adaptable to different inputs. This can be done either automatically or manually...

Automatic Parameter Handling

Let's look at how we can handle the complications that might arise if a custom transformer is reused.

Automatic Handling of User Parameters

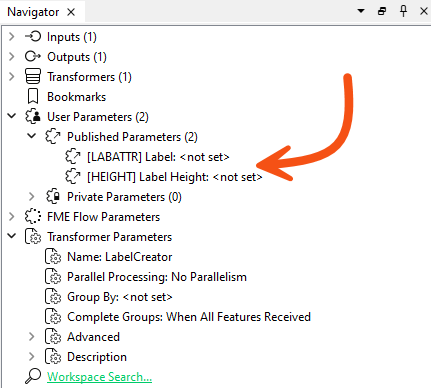

To take the handling of user parameters first, when a transformer with a published parameter is incorporated into a custom transformer, the published parameter is automatically moved from the Navigator window of the main canvas to the Navigator window of the custom transformer:

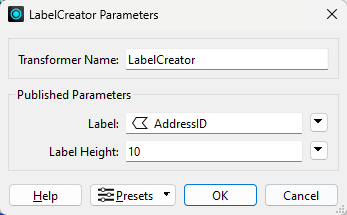

This means the user is no longer prompted for these when running the workspace! But... those parameters instead become available on the Custom Transformer itself:

That way, the parameters can be set differently for each instance of the custom transformer. If user input is required at run-time, then these new parameters can be published and shared if you want them all to have the same value.

Automatic Handling of User Attributes

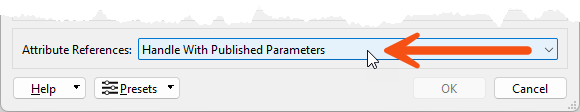

Now, let's look at how attributes are handled. When a custom transformer is created, one of the parameters in the Create Custom Transformer dialog is labeled Attribute References:

"Handle with Published Parameters" is the automatic way of handling attribute references in the custom transformer. It ensures that every attribute referenced within the custom transformer is supported outside the transformer definition.

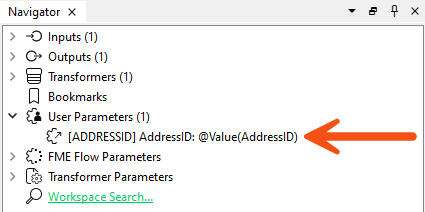

It does that by creating a new user parameter for each attribute:

The transformer inside the custom transformer still references the attribute name, but FME maps the user parameter to that attribute.

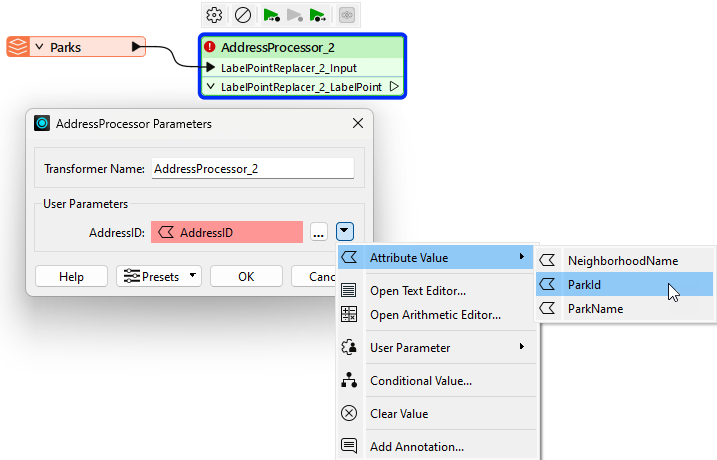

When the custom transformer is used in a place without the required attribute, it is still flagged as "incomplete." However, the user parameter allows the workspace author to select an available attribute:

So (in the above), AddressID is unavailable, but the author can select a different attribute instead.

This illustrates how FME has automatically solved the attribute reference problem using user parameters. To make the custom transformer more generic, the workspace author can change the prompts on these parameters from "AddressID" to "Select an ID Attribute to Process."

Post-Creation Parameter Handling

As we know, custom transformers can be edited after creation.

The "Handle with Published Parameters" setting handles attributes used in a custom transformer only when it is created. We also need to provide a mechanism for handling future edits to a custom transformer (or for creating a custom transformer from scratch).

Handling Incoming Attributes

Attributes entering a custom transformer are handled using a setting inside the transformer definition.

For example, an author puts a StringConcatenator inside a newly created custom transformer. The author wishes to concatenate AddressID and PostalCode.

AddressID is available in the custom transformer because it was used when the custom transformer was created (and Handle With Published Parameters was set).

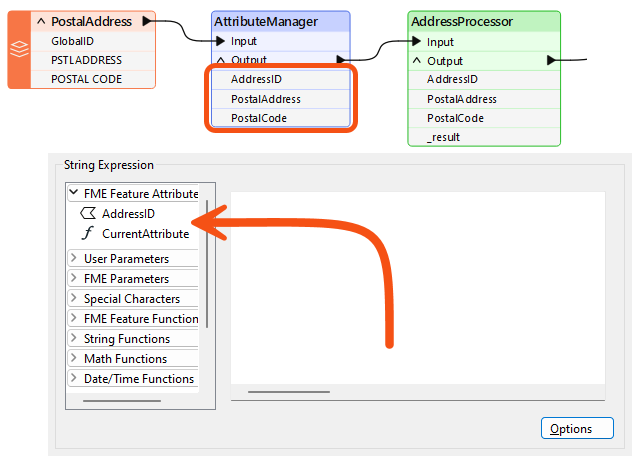

However, PostalCode is not available. It was not being used when the custom transformer was created.

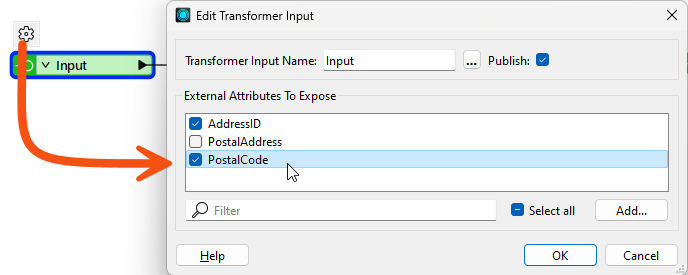

Therefore, the author must expose that attribute. They do so by inspecting the parameters for the Input port, where they can specify other incoming attributes to expose:

Now, PostalCode becomes available to the StringConcatenator and, additionally, is made into a user parameter so that, back on the main canvas, the custom transformer can accept a different attribute selection should PostalCode not be available.

Handling Outgoing Attributes

In addition to incoming attributes, there is also the question of what attributes should emerge from the output of a custom transformer.

Best practice suggests that we only output attributes that the user expects. We should hide or remove any attributes that are part of a calculation or otherwise generated inside the custom transformer but aren’t necessary for the output.

Here, a custom transformer calculates the average area of several polygon features. It has renamed ports and a specific output port to deal with bad features, but it is outputting more attributes than are helpful:

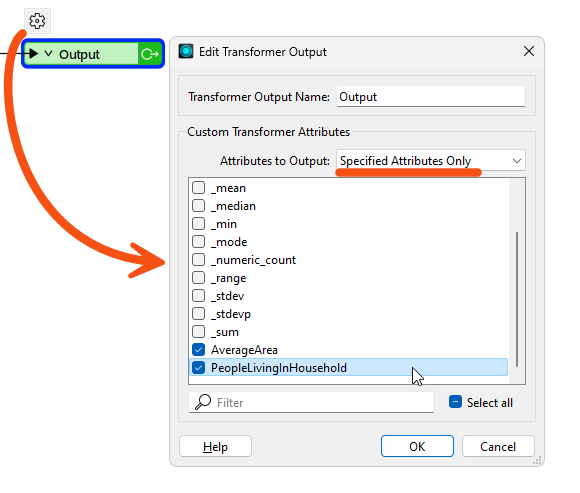

The workspace author should clean up this output. They can do this by visiting the custom transformer definition, viewing the output port object, and they're choosing which attributes are to be output:

The Attributes to Output setting gives the option of outputting all attributes or only those that have a checkmark next to them, as above.

Best Practice Recommendations

User parameters can make your custom transformers much more powerful, but they can also add complexity. We recommend keeping user parameters as simple as possible. Consider the experience for the end user of the transformer, who might not be familiar with how it works.

If the number of choices becomes overwhelming, split the custom transformer into more than one. A good idea to keep in mind: if you're having trouble getting started, the first step is too big.

Make use of user parameter types to validate user input. Sometimes you can't fully validate the input with user parameter types. For example, perhaps you can only accept a certain span of time for a datetime attribute. In that case, build that validation into the workspace itself and use error trapping to tell the user why their input was invalid.

Use conditional visibility to nest functionality. Try to reduce the number of top-level decisions and hide complexity in parameter Group Boxes, which you can add in the Parameter Manager window.
